| SALIENT FEATURES : |
| |
- Heavy duty, sturdy, made from moulded polypopylene, universally accepted chemical resistant thermo plastic.
- Minimum pressure drops with maximum dirt and solid particles holding capacity.
- Can be easily cleaned just by removing the top cover and no tools are required for the same.
- Pressure Rating : 7.5 kgs/cm2
|
| |
| USES : |
| |
- Chemical & Pharmaceutical industries.
- Electro Plating Industries.
- Steel Industries
- Effluent treatment plants
- Water treatment plants
- Paper & Pulp Industries.
- Swimming Pool - Water filtration
|
| |
 |
| |

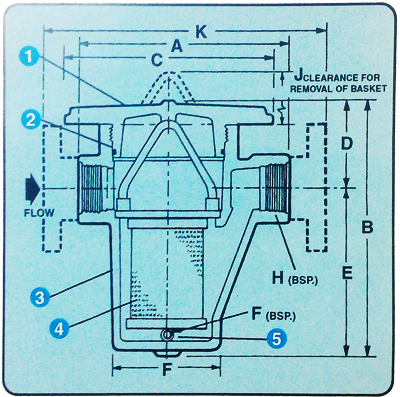

| DIMENSIONS : |
| |
Dimensions are in mm |
Kgs |
Volume When Full |
Size |
A |
B |
C |
D |
E |
F |
G |
H |
J |
K |
soc/thd |
Lit. |
3/4" |
175 |
210 |
175 |
80 |
130 |
90 |
09 |
19 |
175 |
240 |
1.0 |
0.75 |
1" |
175 |
210 |
175 |
80 |
130 |
90 |
09 |
19 |
175 |
240 |
1.0 |
0.75 |
1-1/2" |
260 |
320 |
250 |
110 |
208 |
138 |
09 |
40 |
250 |
--- |
3.0 |
2.70 |
2" |
260 |
320 |
250 |
110 |
208 |
138 |
09 |
40 |
250 |
--- |
3.0 |
2.70 |
3" |
380 |
410 |
375 |
150 |
260 |
175 |
09 |
80 |
312 |
--- |
--- |
8 |
|
| |
|
|
